Cylindrcial Plano-convex Lenses (N-BK7)

Specifications
Material: N-BK7
Diameter tolerance: +/-0.1mm
Design wavelength: 546.1nm
Focal tolerance: +/-2%
surface quality : 60-40 S/D
Centration: 3 arcmin
Surtace flatness: λ/4 @633nm
Clear aperture: 90%
Bevel: Protective bevel



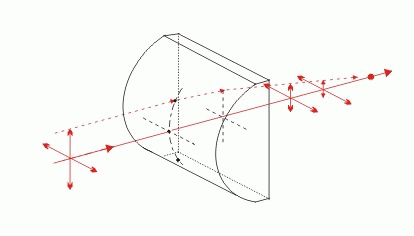

Cylindrical lenses


Item#
Material

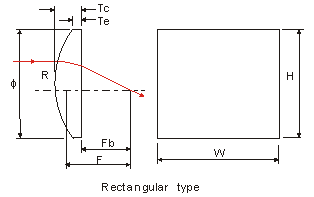

Φ/ (WxH)
F(mm)
R(mm)
Tc(mm)
Te(mm)
Fb(mm)
LC01-Φ5-8   (Round)
BK7
Φ5.0
+8.0
4.13
2.84
2.0
6.14
LC01-Φ8-9.2   (Round)
BK7
Φ8.0
+9.2
4.74
4.20
2.0
6.44
LC01-Φ8-10   (Round)
BK7
Φ8.0
+10.0
5.17
3.9
2.0
7.43
LC01-Φ12-12.5  (Round)
BK7
Φ12.7
+12.5
6.43
7.44
2.0
7.57
LC01-Φ12-25  (Round)
BK
Φ12.7
+25.0
12.88
3.67
2.0
22.58
LC01-Φ12-50  (Round)
BK7
Φ12.7
+50.0
25.75
2.80
2.0
48.17
LC01-Φ25-75  (Round)
BK7
Φ25.4
+75.0
38.64
4.15
2.0
72.28
LC01-Φ25-100  (Round)
BK7
Φ25.4
+100.0
51.52
4.59
2.0
96.99
LC01-Φ25-150  (Round)
BK7
Φ25.4
+150.0
77.27
4.05
2.0
147.34
LC01-10X10-12.7
BK7
10.0x10.0
+12.7
6.54
4.3
2.0
9.8
LC01-10x10-20
BK7
10.0x10.0
+20
10.29
3.3
2.0
17.8
LC01-10X10-25
BK7
10.0x10.0
+25
12.87
3.0
2.0
23.0
LC01-12x10-10
BK7
12.0x10.0
+10
5.2
5.9
2.0
6.17
LC01-12x10-15
BK7
12.0x10.0
+15
7.8
3.8
2.0
12.6
LC01-12x10-20
BK7
12.0x10.0
+20
10.34
3.3
2.0
17.8
LC01-20x10-12.7
BK7
20.0x10.0
+12.7
6.54
4.3
2.0
9.8
LC01-20x10-20
BK7
20.0x10.0
+20.0
10.29
3.3
2.0
17.8
LC01-20x10-25
BK7
20.0x10.0
+25.0
12.87
3.0
2.0
23.0
LC01-20X20-50
BK7
20.0x20.0
+50.0
25.73
4.0
2.0
47.3
LC01-20x20-75
BK7
20.0x20.0
+75.0
38.60
3.3
2.0
72.8
LC01-20x20-100
BK7
20.0x20.0
+100.0
51.47
4.0
2.0
97.3
LC01-20x20-150
BK7
20.0x20.0
+150.0
77.20
3.7
3.0
147.5
LC01-20x20-200
BK7
20.0x20.0
+200.0
102.93
3.5
3.0
197.7
LC01-20x20-250
BK7
20.0x20.0
+250.0
128.67
3.3
3.0
247.7
LC01-20x20-300
BK7
20.0x20.0
+300.0
154.40
3.2
3.0
297.8
LC01-20x20-500
BK7
20.0x20.0
+500.0
257.33
4.0
3.0
497.9
LC01-40x20-50
BK7
40.0x20.0
+50.0
25.73
3.3
3.0
47.3
LC01-40x20-75
BK7
40.0x20.0
+75.0
38.60
3.3
2.0
72.8
LC01-40x20-100
BK7
40.0x20.0
+100.0
51.47
4.0
2.0
97.3
LC01-40x20-150
BK7
40.0x20.0
+150.0
77.20
3.7
3.0
147.5
LC01-40x20-200
BK7
40.0x20.0
+200.0
102.93
3.5
3.0
197.7
LC01-40x20-250
BK7
40.0x20.0
+250.0
128.67
3.4
3.0
247.7
LC01-40x20-300
BK7
40.0x20.0
+300.0
154.40
3.3
3.0
297.8
LC01-40x20-500
BK7
40.0x20.0
+500.0
257.33
3.2
3.0
497.9

Choose Anti-reflective Coatings
 Single layer MgF2
 Multiple layers AR coating
     R<0.25% @ Laser line             (view the curve)
     R<0.5% @ Broadband Wavelength      (view the curve)

        How to order Cylindrical Lenses?              Example:
Material:   N-BK7
Shape:   Plano-Convex Cylindrical
Size or Diameter:   12(W)x10(H) +/-1mm
Focal, Radius:   F=+15mm, R=7.8mm
Thickness:   Tc=3.80.1mm
Surface quality:   60-40 S/D
Flatness:   λ/4 @633nm
Centration:   3'
Coating:   AR @800nm, R<0.5%, AOI=0

   Price on Request

   Custom Design

   Volume Discount
