Displacement Beamsplitters
General Specifications
Material
N-BK7 or N-SF5
Dimension tolerance
±0.1mm
Beam deviation
3 arc min
Surface quality
60-40 S/D
Surface flatness
λ/4@632.8nm
Clear aperture
>90%
Bevel
Protective bevel
Hypotenuse
Polarization dielectric coating
Entrance & exit faces
AR coating

Incidence of angle: 0°±2°

Laser line
Transmittance Tp>96% and Ts<0.3%
Reflectance Rp<4%  and Rs>99.7%


Broadband wavelength
Transmittance Tp>95% and Ts<0.5%
Reflectance Rp<5%  and Rs>99.5%

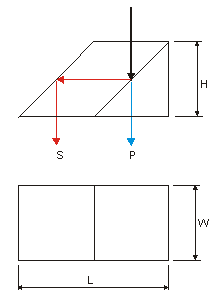

Typical Sizes
WxHxL (mm)
WxHxL (mm)
5.0x5.0x10.0
18.0x18.0x30.0
10.0x10.0x20.0
20.0x20.0x40.0
12.7x12.7x25.4
25.4x25.4x50.8
15.0x15.0x30.0
30.0x30.0x60.0



        How to order Displacement Polarization Beasmplitter Cube?          Example:
Material:   N-BK7
Size:   15.0x15.0x30.0±0.1mm
Wavelength:   780nm
Transmittance:   Tp>96%, Ts<0.3%
Reflectance:   Rp<4%, Rs>99.7%

   Price on Request

   Custom Design

   Volume Discount
