Dove Prisms
Dove prisms  can be used as an image rotator, the output image rotates through twice the angle that the prism rotates through. Dove prism also can be used as a retroreflectors.

General Specifications
Material
N-BK7
Dimensional tolerance
±0.1mm
Surface quality
60-40 S/D
Flatness
λ/4@632.8nm
Bevel
Protective bevel

Angular tolerance:
<30"
<1'
<3'

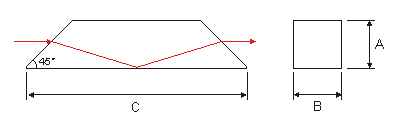

Typical Sizes
    AxB(mm)
     C(μm)
    θ
    5.0x5.0
    21.1
    45°
   10.0x10.0
    42.3
    45°
   15.0x15.0
    62.4
    45°
   20.0x20.0
    84.5
    45°




Choose Coatings
⊗ Single layer MgF2
⊗ Anti-reflective coating, R<0.25%@design wavelength

        How to order Dove Prisms?              Example:
Material:   N-BK7
Size:   15.0x15.0, C=62.4mm, ±0.1mm
Angular accuracy:   45°±1'
Surface quality:   60-40 S/D
Surface flatness:   λ/4 @633nm

Coating:   AR @780nm, R<0.5%, AOI=45°

   Price on Request
