Glan-Taylor Polarizers

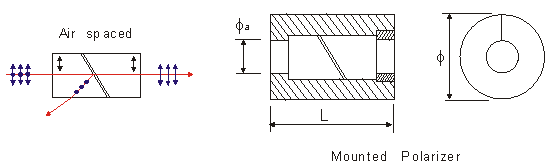

Polarizer is a device that produces linearly polarized light from other states of polarization. Glan taylor polarizer consists two calcite prisms which are separated by an air space. Glan taylor polarizer will divide an entering unpolarized beam into two rays, one is the extraordinary ray that is transmitted through the other side, another is the ordinary ray that is totally internally reflected and absorbed.

General Specifications
Material
Calcite
α-BBO
Wavelength
350-2300nm
190-3500nm
Extinction ratio
5x105 : 1
1x106: 1
Angle field
7.7°
6°
Beam deviation
3 arcmin
3 arcmin
Dimension tolerance
±0.1mm
±0.1mm
Surface quality
20-10 S/D
20-10 S/D
Clear aperture
>90%
>90%
Coating on both sides
Single layer MgF2 coating


Item#
Material

Clear aperture
Φa (mm)
Holder
Φ (mm)
Length
(mm)
Application
Wavelength
PZ1-C06
Calcite
Φ6.0
15.0
15.0
350-2300nm
PZ1-C08
Calcite
Φ8.0
25.4
17.0
PZ1-C10
Calcite
Φ10.0
25.4
19.0
PZ1-C15
Calcite
Φ15.0
30.0
23.0
PZ1-B06
α-BBO
Φ6.0
15.0
15.0
200--300nm
300--700nm
700-3000nm
PZ1-B08
α-BBO
Φ8.0
25.4
17.0
PZ1-B10
α-BBO
Φ10.0
25.4
19.0
PZ1-B15
α-BBO
Φ15.0
25.4
23.0
PZ1-Y08
YVO4
Φ8.0
25.4
15.0
500-4000nm
PZ1-Y10
YVO4
Φ10.0
25.4
17.0



        How to order Polarizers?              Example:
Item #     PZ1-C08
Application Wavelength     350-1000nm


   Price on Request
   Custom Design
   Volume Discount
