Non-Polarizing Beamsplitters Cube (No energy loss)
Applying dielectric coating only instead of hybrid metallic coating, the non-polarizing beamsplitter will get no energy loss. The transmittance and reflectance can be precisely controlled to 50%.
Design only by dielectric coating only.
Energy loss negligible

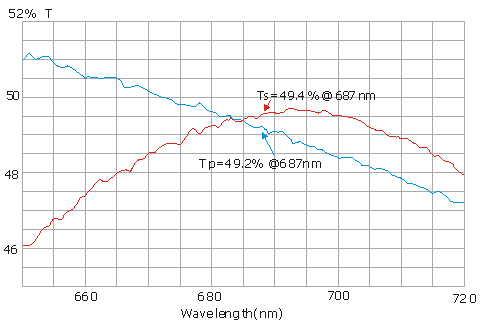

Transmission of P-pol and S-pol are very close to 50% with ±2%
General Specifications
Material
N-BK7
Dimension tolerance
±0.1mm
Beam deviation
3 arc min
Surface quality
60-40 S/D
Surface flatness
λ/4@632.8nm
Clear aperture
>90%
Bevel
Protective bevel
Coating on hypotenuse
Dielectric partial reflective coating
Coating on entrance & exit faces
AR coating
Incidence of angle: 0°±2° or (45° for plate-type).
Transmittance
Tp(Ts)=50±2%
Reflectance
Rp(Rs)=50±2%
Energy absorption
Negligible
Available only for Narrow Wavelength
Typical Sizes
Size (mm)
Size (mm)
5.0x5.0x5.0
18.0x18.0x18.0
10.0x10.0x10.0
20.0x20.0x20.0
12.7x12.7x12.7
25.4x25.4x25.4
15.0x15.0x15.0
30.0x30.0x30.0
( Plate Type )
How to order Non-Polarization Beasmplitter Cube (No Energy loss)? Example:
