Polarization Beamsplitters + Waveplate
General Specifications
Material
N-BK7 or N-SF5
Dimension tolerance
±0.1mm
Beam deviation
3 arc min
Surface quality
60-40 S/D
Surface flatness
λ/4@632.8nm
Clear aperture
>90%
Bevel
Protective bevel
Hypotenuse
Polarization dielectric coating
Entrance & exit faces
AR coating

Incidence of angle: 0°±2°

Transmittance: Tp>96% and Ts<0.3%
Reflectance:   Rp<4%  and Rs>99.7%


Typical Sizes

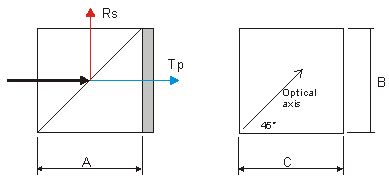

AxBxC (mm)
AxBxC (mm)
5.0x5.0x5.0
18.0x18.0x18.0
10.0x10.0x10.0
20.0x20.0x20.0
12.7x12.7x12.7
25.4x25.4x25.4
15.0x15.0x15.0
30.0x30.0x30.0

Waveplate Size
Zero order, or Multiple order, Size same as beamsplitter
Thickness: 1.0--1.5mm
(Refer to Waveplate Chapter)


        How to order Polarization Beasmplitter Cube + Waveplate?   Example:
Material:   N-BK7
Size:   15.0x15.0x15.0±0.1mm
Wavelength:   780nm
Transmittance:   Tp>96%, Ts<0.3%
Reflectance::   Rp<4%, Rs>99.7%
Waveplate:   λ/4@780nm

   Price on Request

   Custom Design

   Volume Discount
