Rhomboid Prisms
Rhomboid prisms  are used to displace a laser beam without changing its direction. The displacement is equal to the length of the prism.

General Specifications
Material
N-BK7
Dimensional tolerance
±0.1mm
Surface quality
60-40 S/D
Flatness
λ/4@632.8nm
Bevel
Protective bevel

Deviation accuracy
<30"
<1'
<3'
(Parallelism of input and output beam)

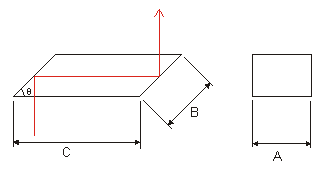

Typical Sizes
    AxB(mm)
    C(mm)
    θ
    5.0x5.0
   7.1
   45°
   10.0x10.0
  14.2
   45°
   15.0x15.0
  21.2
   45°
   20.0x20.0
  28.3
   45°
   25.0x25.0
  35.4
   45°

Choose Coatings
● Single layer MgF2
● Anti-reflective coating, R<0.25%@design wavelength

        How to order Rhomboid Prisms?              Example:
Material:   N-BK7
Size:   AxB=15.0x15.0, C=21.2mm ±0.1mm
Angular accuracy:   45°±1'
Surface quality:   60-40 S/D
Surface flatness:   λ/4 @633nm

Coating:   AR @780nm, R<0.25%, AOI=0° on entrance/exit surfaces

   Price on Request
