Zero order Waveplates

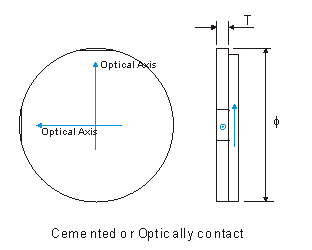

Zero order waveplates are constructed of two multiple order waveplates with their axes crossed. Thus the effect of the first plate is cancelled by the second, except for the residual difference between them.
Zero order waveplates are much less susceptible to wavelength changes, can be up to 2% above or below the design wavelength with little effect on retardation. The waveplates should be considered for more critical application.

General Specifications
Material
Quartz
Dimension tolerance
±0.1mm
Parallelism
2 arc sec
Surface quality
20-10 S/D
Wavefront distortion
λ/8@632.8nm
Retardation tolerance
λ/300
Clear aperture
>90%
Coating on both sides
R<0.25% @ design wavelength

Typical Diameters:
Φ5.0
Φ10.0
Φ12.7
Φ15.0
Φ20.0
Φ25.4
Φ30.0
Φ38.1
Thickness: around 1.0--1.5mm

Retardation Available: λ/2, λ/4,  1λ, λ/8

Mounted Waveplates are available. (See Holder Size)

        How to order Zero Order Waveplate?              Example:
Type:     Zero Order, Optically contact
Size:     Φ25.4mm
Wavelength:     808nm
Retardation:     λ/2 @808nm
Coating:     AR @808nm, R<0.25%, AOI=0°

   Price on Request
   Custom Design
   Volume Discount
