Beamsplitters Cube

The beamsplitter cubes are constructed by cemented two matched right angle prisms. The hypotenuse is coated with partial dielectric coating.

¤ Easy to mount, is ideal for beam superposition.
¤ Less deformation.
¤ Polarization Sensitive

Cube Beamsplitters are recommended for use with collimated or nearly collimated beam. Convergent or divergent beam will contribute spherical aberration.


General Specifications
Material
N-BK7
Dimension tolerance
±0.1mm
Beam deviation
3 arc min
Surface quality
60-40 S/D
Surface flatness
λ/4@632.8nm
Clear aperture
>90%
Bevel
Protective bevel
Hypotenuse surface
Partial reflective coating
Entrance/Exit surfaces
AR coating

Incident of angle: 0°±2°

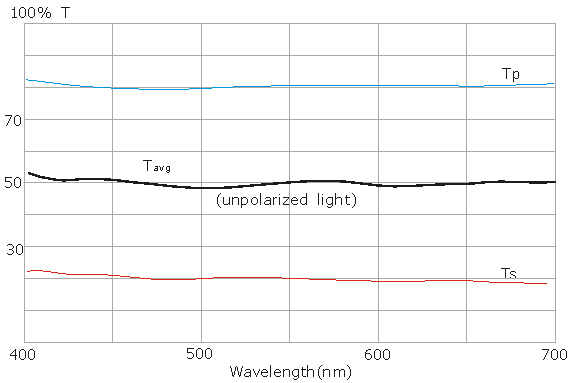

Reflectance/Transmittance R/T=50/50% ±5% Other ratio is available
( R,T are the average of S- and P-pol)


Typical Sizes
Size (mm)
Size (mm)
5.0x5.0x5.0
18.0x18.0x18.0
10.0x10.0x10.0
20.0x20.0x20.0
12.7x12.7x12.7
25.4x25.4x25.4
15.0x15.0x15.0
30.0x30.0x30.0






        How to order Beasmplitter Cubes?              Example:
Material:   N-BK7
Size:   15.0x15.0x15.0±0.1mm
Wavelength:   430-680nm
Transmittance:   T=50±5% (average of S-pol and P-pol)
Reflectance::   R=50±5% (average of S-pol and P-pol)

   Price on Request

   Custom Design

   Volume Discount
