Dichroic Mirrors
Substrate Materials: N-BK7, UV Fused silica

General Specifications
Commercial Grade
 Laser Grade
Dimensional tolerance
±0.1mm
±0.1mm
Surface quality
60-40 S/D
10-5 S/D
Flatness
λ/4 @ 633nm
λ/8 @ 633nm
Parallelism
3'
1'
Bevel
Protective bevel
Protective bevel

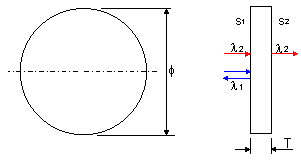

Coating
One surface(S1)
HR @wavelength-1 + HT @wavelength-2
The other surface(S2)
AR @wavelength-2
Angle of incident
0°  or  45°

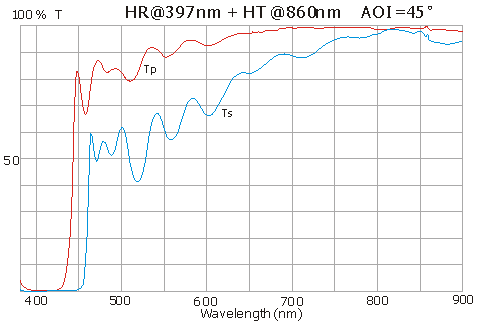

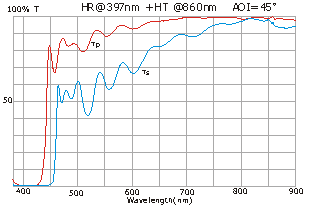

Example

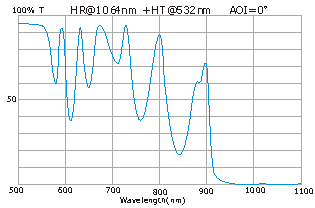

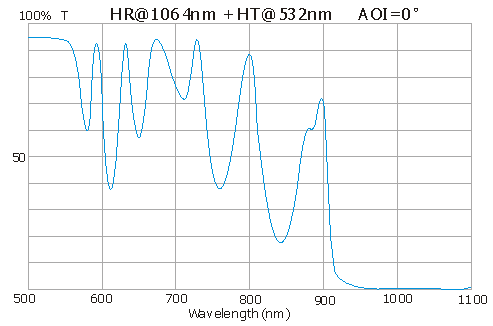

HR @1064nm, R>99.8% + HT @532nm, T>97% AOI=0°

Typical Sizes
Diameter(mm)
Φ5.0
Φ10.0
Φ12.7
Φ15.0
Φ20.0
Φ25.4
Φ30.0
Φ38.1
Φ50.8
Φ76.2

Thickness(mm)
0.5
1.0
1.5
2.0
3.0
4.0
5.0
6.0
8.0
10.0
other sizes and shapes are available.




        How to order Dichroic Mirrors?              Example:
Material:   N-BK7
Substrate size:   Φ25.4±0.1mm, T=6.0mm
Surface quality:   40-20 S/D
Surface flatness: λ/8@633nm

Coating:   S1: HR R>99.8%@1064nm; HT T>95%@532nm, AOI=0°
    S2: AR R<0.25%@532nm


   Price on Request

   Custom Design

   Volume Discount
