Products  >  Mirrors  >  High energy reflective Mirrors


High energy reflective Mirrors

Substrate Materials: N-BK7, UV Fused silica

General Specifications
Dimensional tolerance
Commercial Grade
0.1mm
Laser Grade
0.1mm
Surface quality
60-40 S/D
10-5 S/D
Flatness
λ/4 @ 633nm
λ/8 @ 633nm
Parallelism
3'
1'
Bevel
Protective bevel
Protective bevel

Coating
One surface(S1)
HR @ design wavelength
The other surface
None
Angle of incident
0  or  45

Example
HR @1064nm, R>99.8% AOI=0

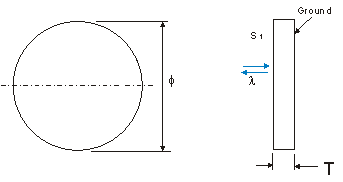

Typical Sizes
Diameter(mm)
Φ5.0
Φ10.0
Φ12.7
Φ15.0
Φ20.0
Φ25.4
Φ30.0
Φ38.1
Φ50.8
Φ76.2

Thickness(mm)
0.5
1.0
1.5
2.0
3.0
4.0
5.0
6.0
8.0
10.0
other sizes and shapes are available.



        How to order Dichroic Mirrors?              Example:
Material:   N-BK7
Substrate size:   Φ25.40.1mm, T=6.35mm
Surface quality:   10-5 S/D
Surface flatness:   λ/8@633nm
Coating:   HR R>99.8%@1064nm, AOI=0

   Price on Request

   Custom Design

   Volume Discount
