Products  >  Waveplates  >  Holders for Waveplates


Holders for Waveplates

The holders are designed to mount waveplates.

Specifications
Material:   Black anodized aluminum
Dimension tolerance:   0.1mm

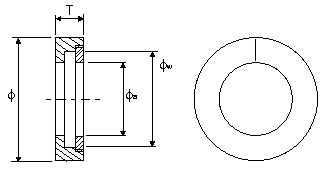

Item#

Holder
Φ(mm)
Holder
T(mm)
Waveplate
Φw(mm)
Clear aperture
Φa(mm)
WH-01
Φ25.4
6.0
10.0
8.0
WH-02
Φ25.4
6.0
12.7
10.5
WH-03
Φ25.4
6.0
15.0
13.5
WH-04
Φ30.0
6.0
20.0
18.0
WH-05
Φ30.0
6.0
25.4
23.0
